DESKTOP CHUYÊN DỤNG CHO DOANH NGHIỆP VERITON X8715G

Được xây dựng trên nền tảng Intel® vPro™ và bộ vi xử lý Intel® Core™ i9 thế hệ 13 mới nhất cùng card đồ họa NVIDIA® T1000, dòng Desktop Doanh Nghiệp Acer VX8715G (thuộc Veriton 8000 Workstation Series) sở hữu sức mạnh vượt trội, đáp ứng mọi nhu cầu của các chuyên gia, giúp họ xử lý công việc nhanh chóng hơn hẳn các máy tính thông thường.

Powerful Processing

Designed for engineers, researchers, and designers, this Veriton workstation utilizes up to a 13th Gen Intel® Core™ i9 processor to deliver superior reliability, unmatched processing power, and advanced security technologies.

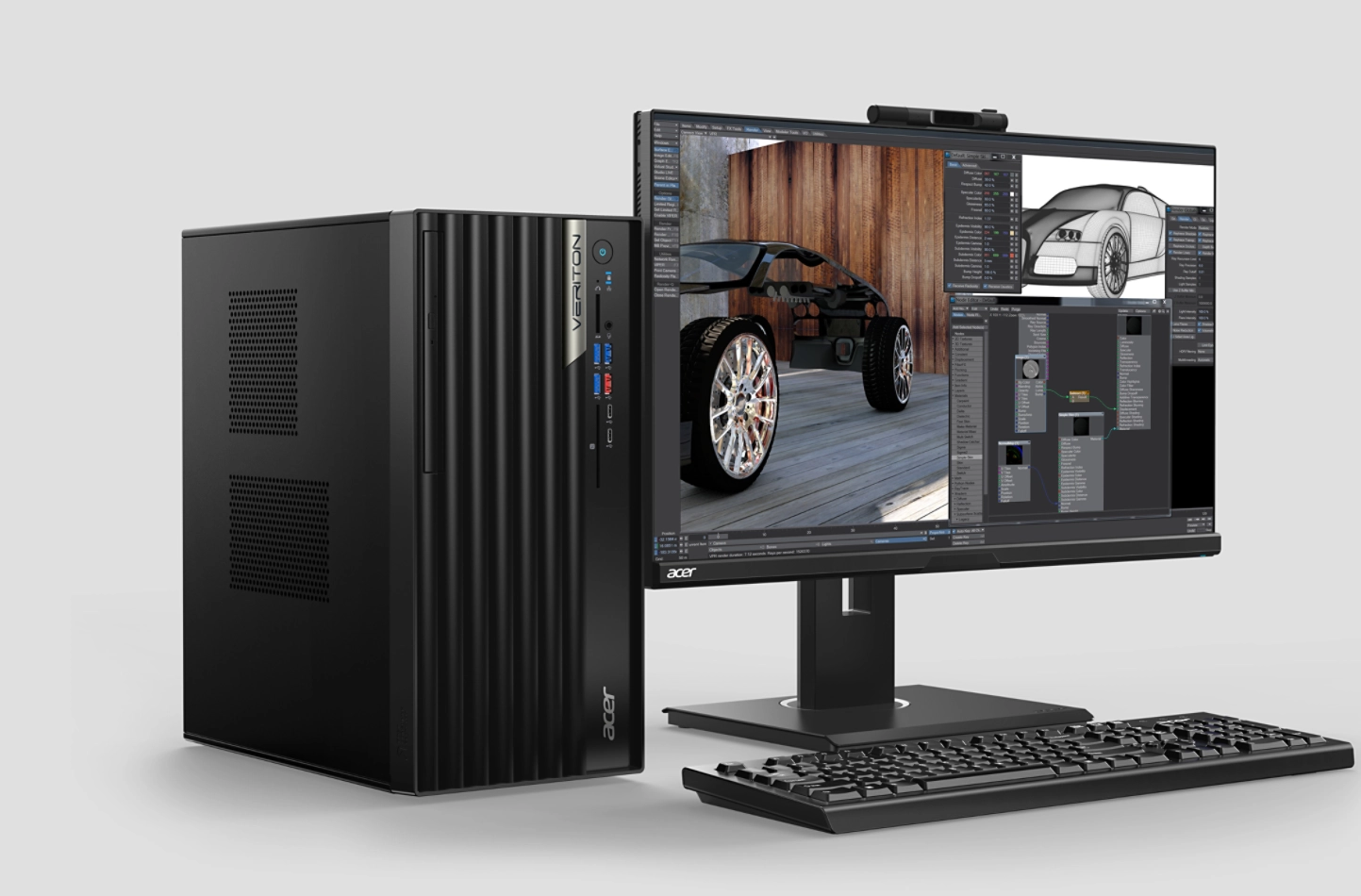

Next Level Graphics

Equipped with its NVIDIA® T1000 GPU and PCIe Gen 4 high-speed bandwidth, this workstation maximizes the productivity for everyone from video editing and 3D content creators to high-end CAD designers.

Designed for Growth

This Acer workstation PC is configurable to all your specific needs with an up to 700W power supply, up to 128 GB of DDR5 ECC memory, up to 2 TB M.2 PCIe SSD\, and up to 8 TB HDD storage with an easy-swap design.

Power Supply

700W

Memory

Up to 128 GB

DDR5 ECC

Storage

Up to 10 TB

Connectivity

Dual LAN Ports

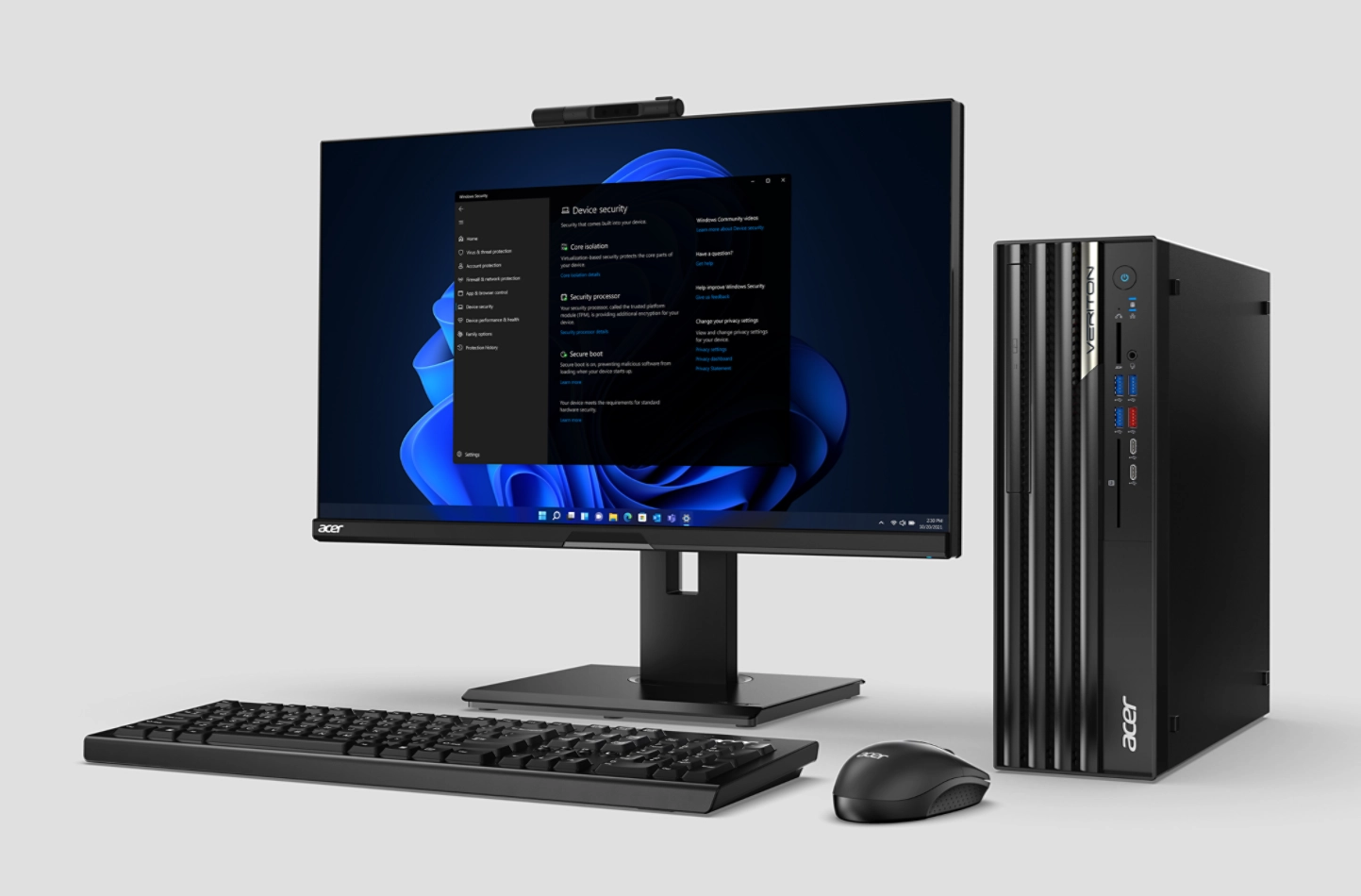

Business-class Security

Intel vPro® offers hardware-enhanced security and remote manageability for a wide range of devices in companies of all sizes. Further, the ECC memory detects and corrects soft errors to help prevent system crashes.

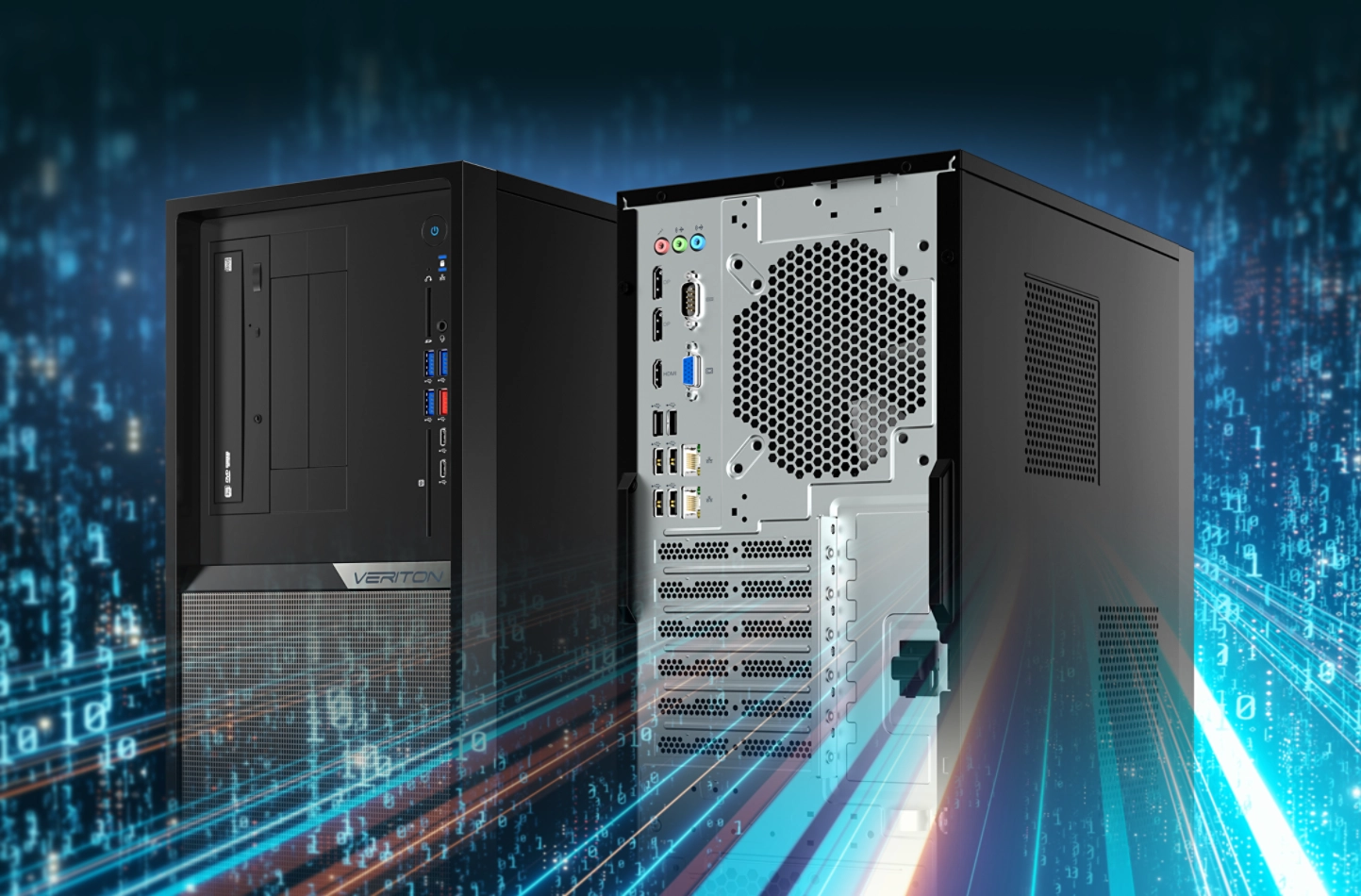

Advanced Connectivity

This high-performance PC provides a full range of connection options and high-speed connectivity, including a USB 3.2 Gen 2×2 Type-C with 20 Gbps transfer speeds, Wi-Fi 6E, and dual LAN ports featuring one 2.5 Gb Ethernet port.



ISV Certified

Engineers and designers demand a hardware solution tested and certified by Independent Software Vendors (ISVs). Veriton Workstations offer ISV-certified hardware combined with the most recent technology.

HỖ TRỢ KỸ THUẬT

  • Download BIOS Veriton X8715G tại đây.

THÔNG SỐ KỸ THUẬT CHI TIẾT

ModelAcer Veriton X8715G
DimensionsSmall Form Factor: 105 (W) x 335 (D) x 335 (H) mm (4.13 x 13.19 x 13.19 inches)
Operating system
  • Windows 11 Pro 64-bit (Acer recommends Windows 11 Pro for business)
  • Windows 11 Home 64-bit
  • Windows 11 Pro (Windows 10 Pro Downgrade preinstalled)
  • UEFI Shell support all Linux
CPU and chipset

CPU options

13th Generation Intel® Core™ i9 vPro® , Core™ i7 vPro®, Core™ i5 vPro® processor, Intel® UHD Graphics 770

  • Intel® Core™ i9-13900 Processor (36M Cache, up to 5.60 GHz)
  • Intel® Core™ i7-13700 Processor (30M Cache, up to 5.20 GHz)
  • Intel® Core™ i5-12600 Processor (24M Cache, up to 5.00 GHz)
  • Intel® Core™ i5-13500 Processor (24M Cache, up to 4.80 GHz)
  • Intel® Core™ i5-13400 Processor (20M Cache, up to 4.60 GHz)

12th Generation Intel® Core™ i9 vPro® , Core™ i7 vPro®, Core™ i5 vPro® processor, Intel® UHD Graphics 770

  • Intel® Core™ i9-12900 Processor (30M Cache, up to 5.10 GHz)
  • Intel® Core™ i7-12700 Processor (25M Cache, up to 4.90 GHz)
  • Intel® Core™ i5-12600 Processor (18M Cache, up to 4.80 GHz)
  • Intel® Core™ i5-12500 Processor (18M Cache, up to 4.60 GHz)
  • Intel® Core™ i5-12400 Processor (18M Cache, up to 4.40 GHz)

Chipset

  • Intel® W680 Chipset for WorkStation (better than Intel® Q670 – Intel® 600 Series)
Memory
  • 32GB DDR5 4800MHz UDIMM
  • 16GB DDR5 4800MHz UDIMM
  • 8GB DDR5 4800MHz UDIMM
  • 32GB DDR5 4800MHz ECC Registered UDIMM
  • 16GB DDR5 4800MHz ECC Registered UDIMM
  • Support DDR5 4800MHz ECC Registered UDIMM
  • Up to 128 GB (4x32GB) of Dual-channel DDR5 4800 MHz (04 slots)
Storage

Hard disk drive options: 02 ports M.2 PCI-e & 04 ports SATA 6Gb/s

  • 2 TB SATA III 4K 3.5-inch 7200 RPM
  • 1 TB SATA III 4K 3.5-inch 7200 RPM
  • 2048 GB (2TB) M.2 2280 PCI-e Gen4 NVMe SSD
  • 1024 GB (1TB) M.2 2280 PCI-e Gen4 NVMe SSD
  • 512 GB M.2 2280 PCI-e Gen4 NVMe SSD
  • 256 GB M.2 2280 PCI-e Gen4 NVMe SSD
Optical media drive

Optional 8X Super-Multi drive, 9.0 mm slim, tray-load

  • Read: CD-ROM, CD-R, CD-RW, DVD-ROM, DVD-Video, DVD-R (4.7 GB), DVD-R double-layer, DVD-RW (Ver 1.1/1.2), DVD+R, DVD+R double-layer, DVD+RW, DVD-RAM
  • Write: CD-R, CD-RW, HS-RW, US-RW, US-RW+, 8 cm CD, DVD-R, DVD-R double-layer, DVD-RW, DVD+R, DVD+R double-layer, DVD +RW, DVD-RAM, 8 cm DVD
Graphics
  • NVIDIA® T1000 with 8 GB of GDDR6 (supporting: 4x mini DisplayPort™)
  • NVIDIA® T400 with 4 GB of GDDR6 (supporting: 3x mini DisplayPort™)
Audio
  • Integrated high-definition, 5.1-channel surround sound.
  • Realtek ALC897-VA2-CG 5.1-Ch HD audio CODEC.
Communication

WLAN

  • 802.11ax/ac/a/b/g/n, Wi-Fi 6E and Bluetooth® 5.2
  • 802.11ax/ac/a/b/g/n, Wi-Fi 6 and Bluetooth® 5.2
Input and output

Front/Side I/O connectors

  • Card reader: Optional
  • Audio combo jack(s): 01
  • USB 3.2 Gen1 Type A port(s): 03
  • USB 3.2 Gen2 Type A port(s): 01 support shutdown charging
  • USB 3.2 Gen2 Type C port(s): 01
  • USB 3.2 Gen2x2 20Gb/s Type C port(s): 01

Rear I/O connectors

  • D-Sub (VGA) port(s): 01
  • HDMI port(s): 01 HDMI-out 2.1
  • DisplayPort (DP) 1.4 ports: 02
  • COM (Serial) port(s): 01
  • Serial ports on board header (COM2): 01
  • Gigabit LAN port(s): 02 (01 port 1GbE Intel I219-LM & 01 port 2.5GbE Intel I226-V)
  • Audio jack(s): 03 (mic/ line-in/ line-out)
  • USB 2.0 Type A port(s): 06

* Specifications vary depending on BOM.

Expansion slot(s)
  • Number of PCIe x16 slot(s): 02
  • Number of PCIe x1 slot(s): 01
  • Number of PCI slot(s): 01
  • M.2 slot (for SSD): 02
  • M.2 slot (for WLAN): 01
Commercial features
  • TPM v2.0 (Trusted Platform Module)
  • Kensington lock slot
  • Hard drive password protection (via BIOS)
  • WOL (Wake On Lan)
  • Intel® vPro™ Technology
  • RAID support (via BIOS)
  • BIOS Lock (Enable/ Disable to protect)
  • USB and all ports control (Enable/ Disable)
  • Acer ControlCenter support management and verify BIOS/ Drivers
  • VT-d: Virtualization Technology for Directed I/O which enables protection by restricting direct memory access (DMA). (Enable/ Disable in BIOS)
  • Acer Display Widget application
  • Acer ProShield Plus security manager includes:
    • (1) Data Protection: File & Folder Encryption and Decryption, Personal Security Drive
    • (2) Data Removal: File Shredding for secure erase
    • (3) Security Alert: Invalid Access Alert, Security Report
Commercial selected options
  • DisplayPort™-to-DVI adapter
  • Internal speaker
  • Dust filter
Nguồn điện
  • 400W single-rail 12V PFC, auto-sensing 100-240V 50/60Hz, 80PLUS# Gold (90%), TFX
  • 300W single-rail 12V PFC (EuP), auto-sensing 100-240V 50/60Hz, 80PLUS Bronze (85%), TFX
  • 300W single-rail 12V PFC (EuP), auto-sensing 100-240V 50/60Hz, 80PLUS Platinum (95%), TFX
  • 180W single-rail 12V PFC (EuP), auto-sensing 100-240V 50/60Hz, 80PLUS Bronze (85%), TFX
System complianceRoHS, DMI, GS, ENERGY STAR®, PC2001
Options and accessoriesWireless (2.4 GHz RF) full size keyboard and mouse optional USB full size keyboard and mouse standard
Chứng nhậnBSMI, VCCI, CE, FCC, CB
WarrantyOptions: 01 year/ 02 years/ 03 years Onsite or PnR (Pickup & Return) warranty. Keep SSD/HDD in warranty services.
