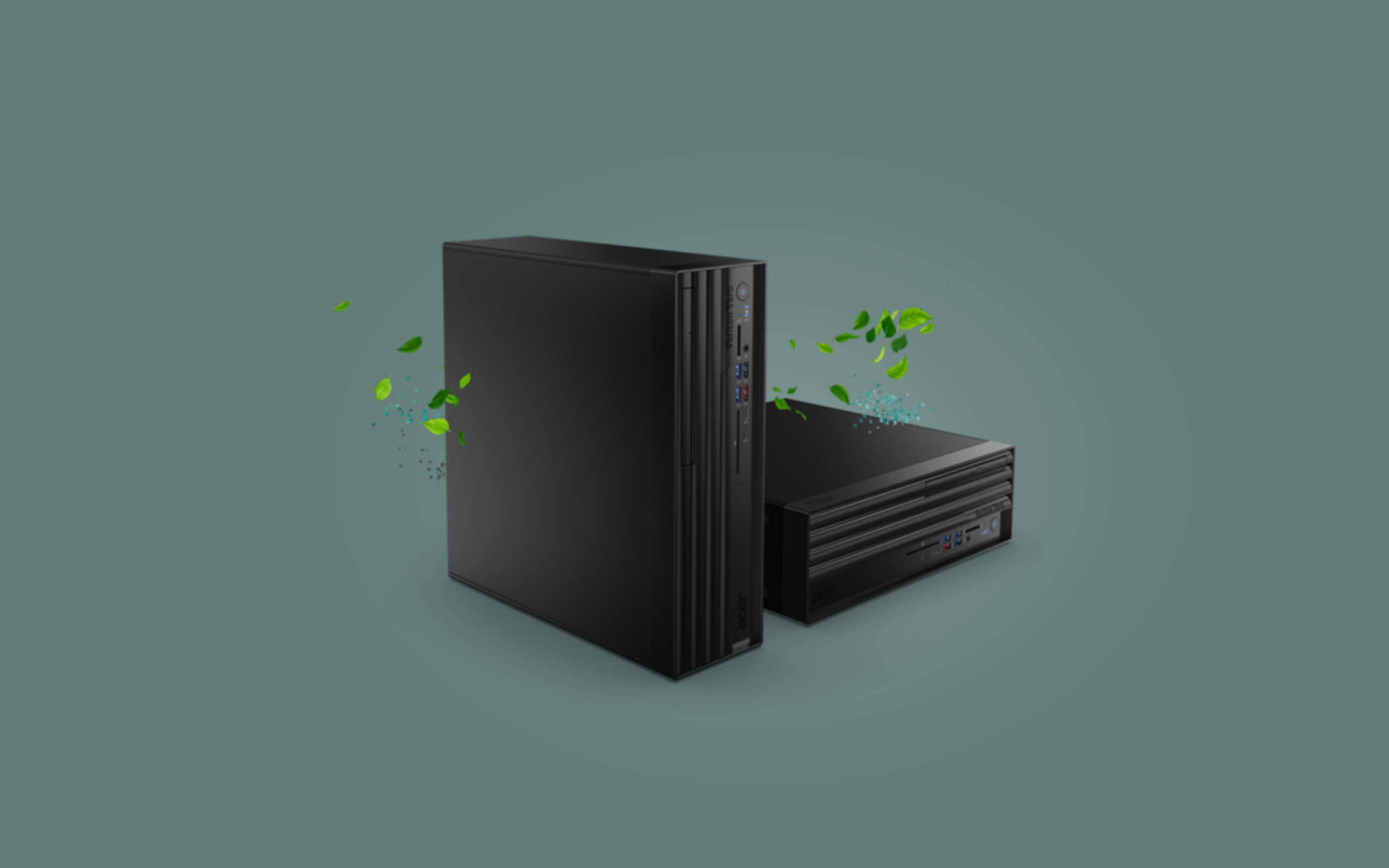

| Model | Acer Veriton Vero X4720 |
| Dimensions | Small Form Factor: 105 (W) x 335 (D) x 335 (H) mm (4.13 x 13.19 x 13.19 inches) |
| Operating system | - Windows 11 Pro 64-bit (Acer recommends Windows 11 Pro for business)
- Windows 11 Home 64-bit
- UEFI Shell
- LINUX
|
| CPU options and chipset | - Intel® Core™ i9-14900 24 cores, 32 threads, 2.00 GHz up to 5.80 GHz, 36MB Smart Cache, Intel UHD Graphics 770
- Intel® Core™ i7-14700 20 cores, 28 threads, 2.10 GHz up to 5.40 GHz, 33MB Smart Cache, Intel UHD Graphics 770
- Intel® Core™ i5-14600 14 cores, 20 threads, 2.70 GHz up to 5.20 GHz, 24MB Smart Cache, Intel UHD Graphics 770
- Intel® Core™ i5-14500 14 cores, 20 threads, 2.60 GHz up to 5.00 GHz, 24MB Smart Cache, Intel UHD Graphics 770
- Intel® Core™ i5-14400 10 cores, 16 threads, 2.50 GHz up to 4.70 GHz, 20MB Smart Cache, Intel UHD Graphics 730
- Intel® Core™ i3-14100 04 cores, 08 threads, 3.50 GHz up to 4.70 GHz, 12MB Smart Cache, Intel UHD Graphics 730
- Intel® Pentium™ Gold G7400 02 cores, 04 threads, 3.70 GHz, 6MB Smart Cache, Intel UHD Graphics 710
Chipset: Intel® B760 Chipset |
| Memory | - 32 GB / 16 GB / 8 GB DDR5 5600MHz UDIMM
- 16 GB / 8 GB DDR5 4800MHz UDIMM
- Up to 128 GB of Dual-channel DDR5 4800 MHz (04 slots)
|
| Storage | Hard disk drive (option): 04 SATA 6Gb/s connectors - 2 TB SATA III 3.5-inch 7200 RPM
- 1 TB SATA III 3.5-inch 7200 RPM
Solid state drive (option): 02 slots M.2 - 1TB / 512 GB / 256 GB M.2 2280 PCI-e NVMe Gen4 SSD
- 1TB / 512 GB M.2 2280 PCI-e NVMe Gen4 Performance SSD
(Read speed: up to 5,000 MB/s. Write speed: up to 4,000 MB/s) |
| Optical media drive | Optional 8X Super-Multi drive, 9.0 mm slim, tray-load |
| Graphics | - Intel® UHD graphics
- NVIDIA® RTX™ A2000 with 12 GB of GDDR6, 4*mDP (option)
- NVIDIA® T1000 with 8 GB of GDDR6, 4*mDP (option)
- NVIDIA® T400 with 4 GB of GDDR6, 3*mDP (option)
|
| Audio | - Realtek ALC897-VA2-CG. Integrated high-definition audio, surround sound
|
| Communication | WLAN (option): - Intel AX201 802.11ax/ac/a/b/g/n, Wi-Fi 6E and Bluetooth® 5.3
- Intel AX211 802.11ax/ac/a/b/g/n, Wi-Fi 6 and Bluetooth® 5.3
LAN (option): - LAN controller: Intel I219V
- Gigabit Ethernet 10/100/1000 Mbps
|
| Expansion slot(s) | - PCIe x16 slot: 2 half-height
- PCIe x1 slot: 1 half-height
- PCI slot: 1 half-height
- M.2 slot (for SSD): 2 slots M.2 2280 PCIe
- M.2 slot (for WLAN): 1 slot M.2 2230
|
| Commercial features | - TPM v2.0 (Trusted Platform Module)
- Kensington lock slot
- Chassis Lock & Chassis intrusion alarm
- BIOS Supervisor Password
- Hard drive password protection (via BIOS)
- WOL (Wake On Lan)
- Intel® vPro™ Technology
- RAID support (via BIOS)
- Virtualization Technology for Directed I/O (VT-d) which enables protection by restricting direct memory access (DMA)
- BIOS Write Protect
- BIOS self-healing (BIOS ROM size 16MB*2)
- BIOS Flash update
- Acer ControlCenter app already:
- Check Up: to view & control the health of components
- Tune Up: for speed up system
- Update: auto and create agenda to update firmware & drivers
- Recovery: to create backup & restore
- Acer Office Manager (download from Acer) support control & update software/ firmware/ BIOS over Internet (deploy to many clients).
- Acer ProShield Support (download from Acer):
- Personal Secure Drive
- File Shredder
- Password settings
- Biometric password setting (Windows Hello Authentication)
- BIOS password
- Notify administrator if any asset change on manage clients
- Enforce changes in configuration / Power saving
- Show activity history information
- Port enable/disable
- App Guard
- Browser Guard
- File Encryption & decryption
|
| Commercial options | - SD card reader module
- Internal speaker
- Office Home & Business 2024
- Smart card reader RTS5169 module (Supports ISO-7816 Class A, B and C smart cards and EMV 2000 (EMV 4.1) compatible)
|
Power supply and adapter | Power supply (optional): 100-127/220-240V AC 50/60Hz - 180 W PFC v100-127/220-240V AC 50/60Hz, auto-sensing, 80PLUS® Bronze (82+), TFX.
- 300 W single-rail 12 V PFC (EuP) 100-127/220-240V AC 50/60Hz, auto-sensing, 80PLUS® Platinum (89+), TFX.
|
| System compliance | RoHS, EPEAT® Gold (United States, France, Taiwan), DMI, GS, ENERGY STAR®, PC2001 |
| Options and accessories | - Option 1: Wireless (2.4 GHz RF) full size keyboard and mouse
- Option 2: USB full size keyboard and USB optical mouse
|
| Certification | BSMI, VCCI, CE, FCC, CB, TCO Certified |
| Warranty | - Options: 01 year/ 02 years/ 03 years Onsite or PnR (Pickup & Return) Warranty.
- Keep SSD/HDD in warranty services.
|
