| Model | Altos Brainsphere™ P130 F9 |
| CPU | – Processor type: Intel 12th / 13th/14th Core™ series, TDP up to 65W – Number of processors: 1 |
| On-board Devices Chipset | – Chipset: Intel® W680 Chipset – SATA: 4 SATA3 (6 Gb/s) ports – SATA/PCIe RAID: Intel onboard software RAID 0, 1, 5, 10 (only supports Windows OS) – Graphics: Intel® UHD Graphics 700 series – Network controller: - 1 Gb/s (10/100/1000) BASE-T LAN Port (Intel® I219-LM, support Intel vPro®)
- 2.5 Gb/s (10/100/1000) BASE-T LAN Port (Intel® I226-V)
– Audio controller: 5.1 CH HD Audio (Realtek® ALC897) |
| Memory | – Memory slot: 4 DIMM slots (Dual channel) – Memory type: Up to 32GB, ECC / Non-ECC DDR5 4800 MHz UDIMM – Total Memory capacity: Up to 128GB |
| Expansion slots | – PCIe / PCI: - 1 PCI-E 4.0 x16 slot
- 1 PCI-E 3.0 x16 slot (x4 Lanes)
- 1 PCI-E 3.0 x1 slot
- 1 PCI slot
– M.2: - 2 M.2 2280 PCI-E 4.0 slots (For SSD)
- 1 M.2 2230 PCI-E 3.0, E Key for Wi-Fi & Bluetooth
|

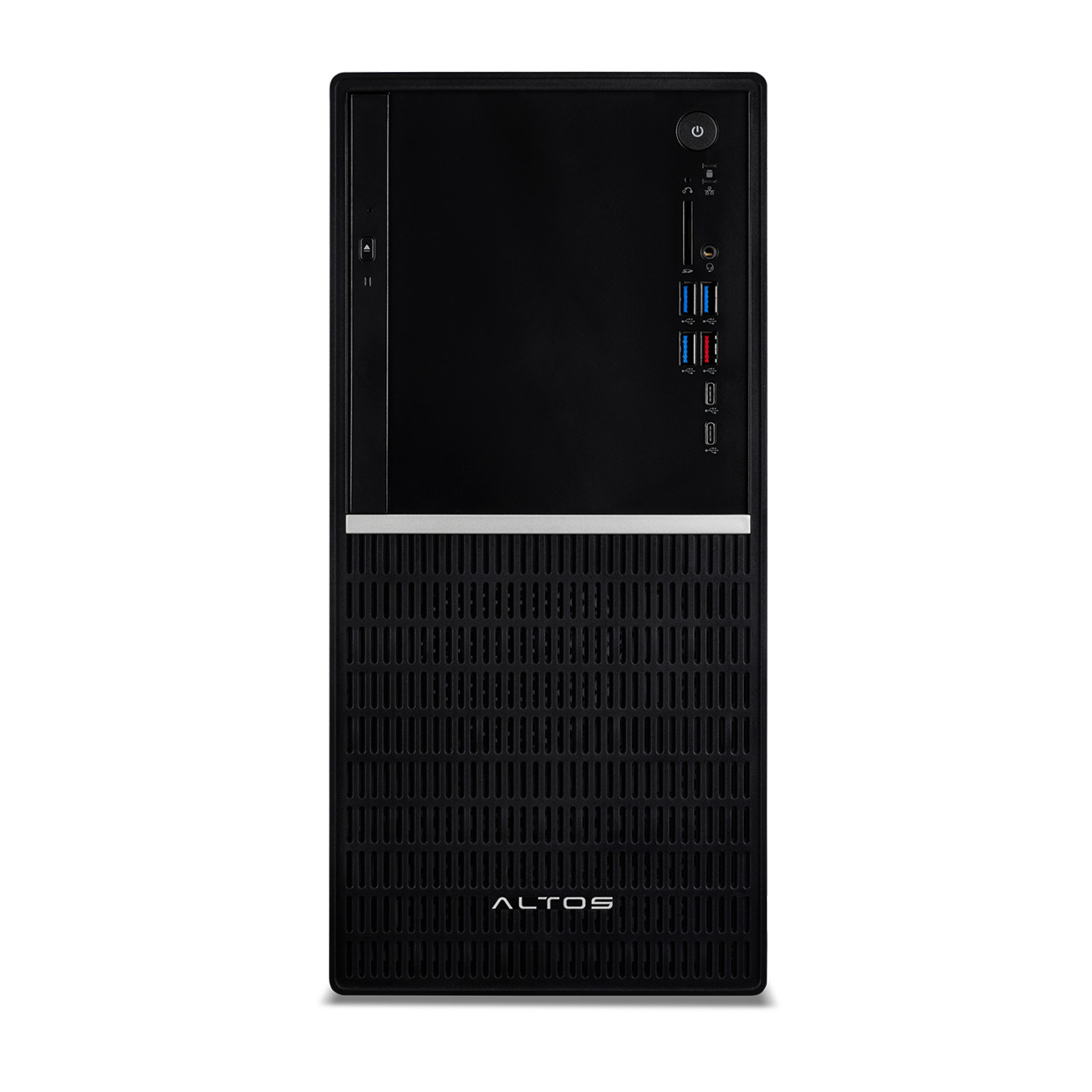

| I/O ports | – Front I/O Ports: - 1 USB3.2 Gen2 Type-A(w/1.5A Sharing@S5) (w/i BC1.2) Port
- 3 USB3.2 Gen1 Type-A Ports
- 1 USB3.2 Gen2 Type-C Port
- 1 USB3.2 Gen2x2 Type-C Port
- 1 SD Card Reader (Optional)
- 1 Combo Jacks (In/Out)

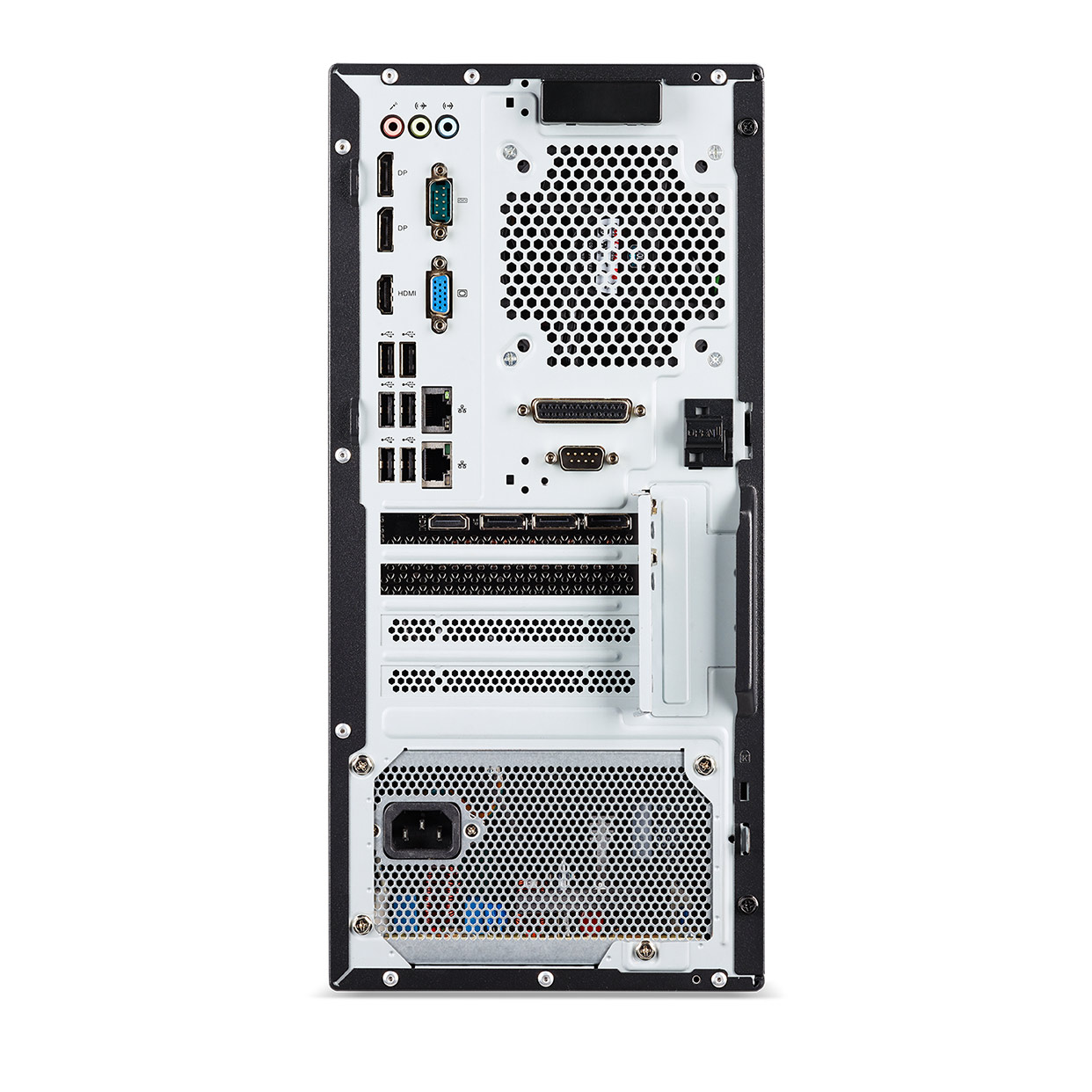

– Rear I/O Ports: - 1 VGA Port
- 1 HDMI 2.1 Port
- 2 DP 1.4 Ports
- 2 RJ45 Ports
- 6 USB 2.0 Ports
- 1 Com Port
- 3 Audio jacks (In/Out/MIC)
|
| Supported VGA | - Intel Arc A380
- Nvidia GT720
- Nvidia RTX 2000 ADA
- Nvidia RTX 3050
- Nvidia RTX 4060
- Nvidia RTX 4090
- Nvidia RTX 4000 ADA
- Nvidia RTX A1000
- Nvidia RTX A2000
- Nvidia RTX A4000
- Nvidia RTX A400
|
| Commercial features | - Integrated TPM v2.0
- Hard drive password protection (via BIOS)
- RAID support (via BIOS)
- Kensington lock slot
- Intel® vPro™ Technology
- WOL (Wake On Lan)
|

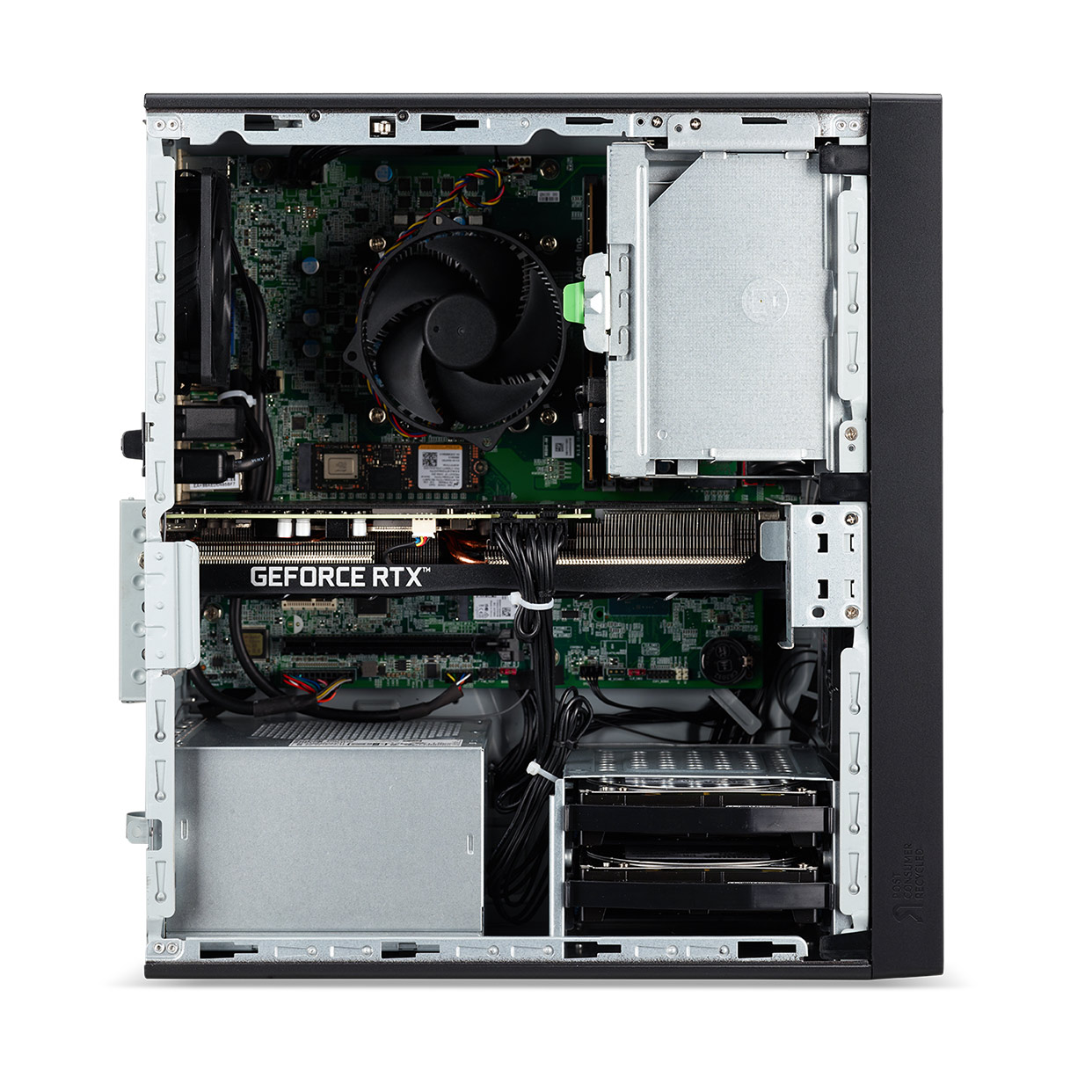

| Drive Bays | – Media bay (Optional): - [10L/20L] slim ODD bay:For 9.0 mm ODD
– Storage bay: - [10L] 1 x 3.5″ slots:For hard disk
- [20L] 2 x 3.5″ slots:For hard disks
|
| Accessory | - Acer Wireless Mouse / Keyboard
- Acer Wired Mouse / Keyboard
|
| Power supply | - [10L/20L] 300W Single –rail 12V, 80PLUS® Brown or Platinum
- [20L] 400W Single –rail 12V, 80PLUS® Gold
- [20L] 500W Single –rail 12V, 80PLUS® Gold
- [20L] 750W Single-rail 12V, ATX 3.0, 80PLUS® Gold
|
| Dimensions (D x W x H) | - [10L] 348.7 (D) x 105 (W) x 335 (H) mm (13.73 x 4.13 x 13.19 inches)
- [20L] 335 (D) x 175 (W) x 370 (H) mm (13.19 x 6.89 x 14.57 inches)
|
| OS | - Microsoft® Windows 10/11 Pro 64-bit
- UEFI Shell
|
| System compliance | RoHS, DMI, GS, ENERGY STAR®, PC2001 |
| Certification | BSMI, CE, FCC, CB |
